1. Product introduction

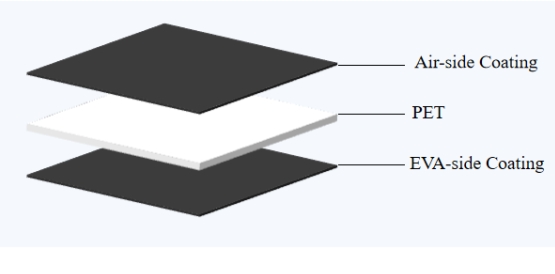

Inshine201Y&Inshine201H is a FPC structural solar cell backplane developed by our company with excellent weather fastness, anti-yellowing and high performance-price ratio. The backplane has a three-layer structure and adopts a double-sided coating process. Among them, the outer layer (air surface) is coated with self-developed fluorocarbon coating with high weather fastness and anti-yellowing. The middle layer is PET polyester film with good insulating properties.The inner layer (EVA surface) is coated with self-developed fluorocarbon coating with good bonding properties with the film.
2. Product characteristics
♦The fluorine coating as the outer air surface has better water vapor barrier than the conventional fluorine film.
♦ The coating formula is self-developed, the packaging performance is guaranteed, and the fluorine content is better.
♦ The cost performance is higher. The repair is easier.
♦ Colors available (including white, black and transparent).
3. Product certification
4. Storage condition
During the specified storage period, the storage temperature of the backplane should be lower than 30 °C and higher than 0 °C, and the humidity should be less than 70%. The storage period shall be 12 months from the date of production or as required by the agreement between the supplier and the demander.
Specification

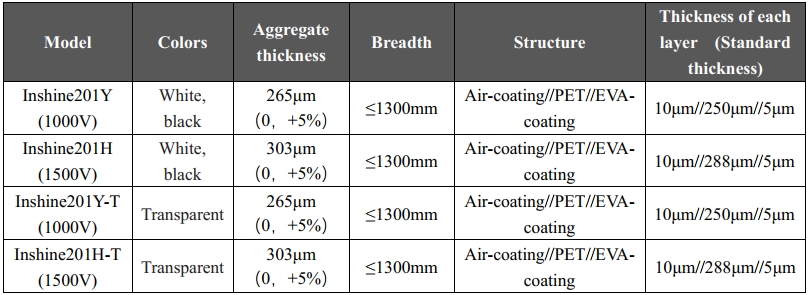

3.1 Product model and specification

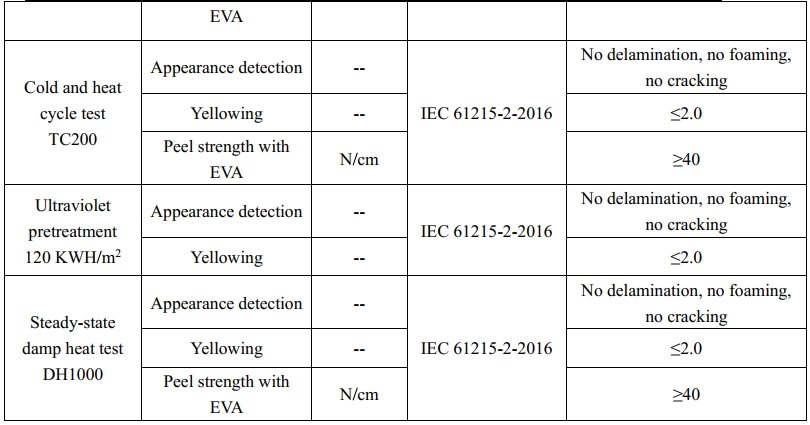

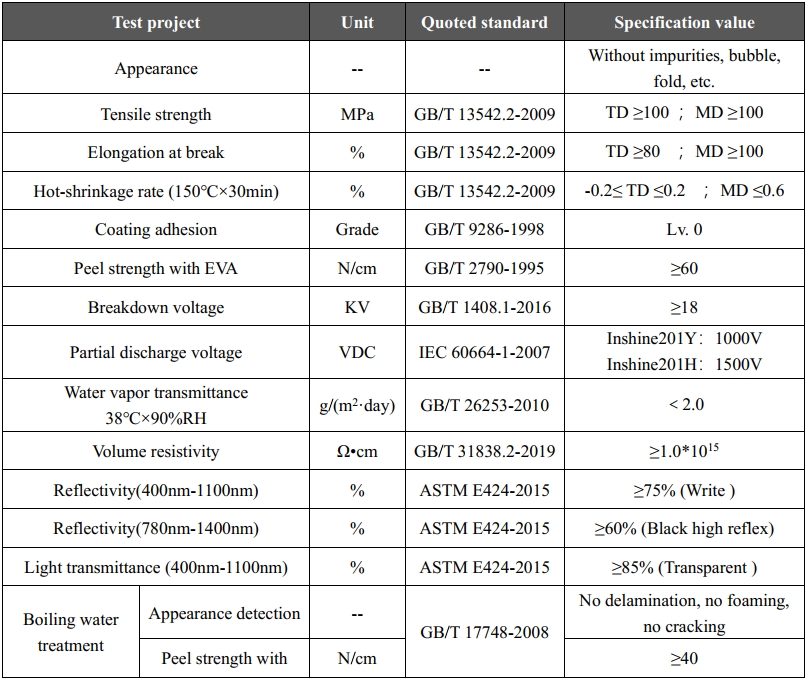

3.2 Product characteristics
